M3 x 20mm Socket Cap Head Screw, BZP Grade 12.9 DIN 912
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
M3 socket cap head screw
M3 cap head screw with a deep internal socket (hex) drive for easy installation allowing you to apply the required torque for a secu. . .
M3 socket cap head screw
M3 cap head screw with a deep internal socket (hex) drive for easy installation allowing you to apply the required torque for a secure hold every time.
Offering a secure hold every time and installed with an Allen wrench or hex key (Allen key) sees them widely used across many industries.
Installed with an Allen wrench or hex key (Allen key) sees them widely used across many industries.
A versatile machine screw also known in the trade as Allen key bolts, cap head bolts, or socket screws.
Available in many sizes and lengths to suit your requirements, these screws are used by DIY enthusiasts and professionals across many diverse sectors including automotive, aerospace, machinery, and construction.

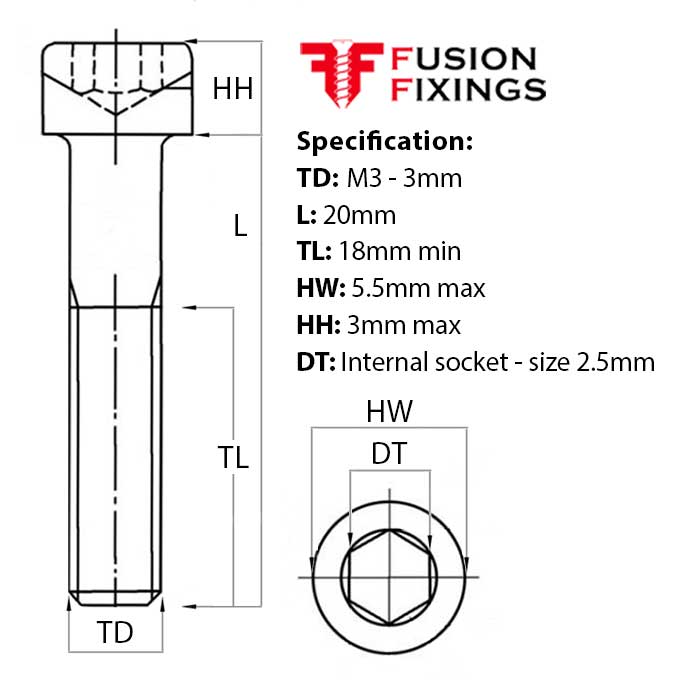

M3 socket cap head screw specification:
- Diameter (TD): M3 - 3mm
- Length (L): 20mm
- Thread length (TL): 18mm min
- Head width (HW): 5.5mm max
- Head height (HH): 3mm max
- Head type: Cap head
- Recess type (DT): Internal hex drive (Size 2.5mm)
- Pitch: 0.5mm
- Material: Grade 12.9 steel
- Finish: BZP Bright zinc plated
- Conformality: DIN 912
The M3 socket cap head screw is part of an extensive range of socket cap head screws available from Fusion Fixings with bulk discounts.
Don’t forget the hex full nuts?
Don’t forget the hex full nuts for use with your socket cap head screws. Take a look at the BZP M3 hex full nut.
Do you need socket cap head screws with higher corrosion resistance?
If you need cap head screws with the versatility that high corrosion resistance offers, take a look at our A2 stainless steel M3 x 20mm socket cap head screw.
For the best resistance to corrosion take a look at our A4 stainless steel M3 x 20mm socket cap head screw which offers marine grade corrosion resistance.
