M6 x 65mm Socket Cap Head Screw BZP DIN 912 Grade 12.9

M6 socket cap head screw

M6 cap head screw with a deep internal socket (hex) drive for easy installation allowing you to apply the required torque for a secure hold every time.

Manufactured in grade 12.9 steel with a bright zinc plating and designed with a distinctive compact cylindrical head allowing use in areas where space is tight.

Installed with an Allen wrench or hex key (Allen key) sees them widely used across many industries.

A versatile machine screw also known in the trade as Allen key bolts, cap head bolts, or socket screws.

Available in many sizes and lengths to suit your requirements, these screws are used by DIY enthusiasts and professionals across many diverse sectors including automotive, aerospace, machinery, and construction.

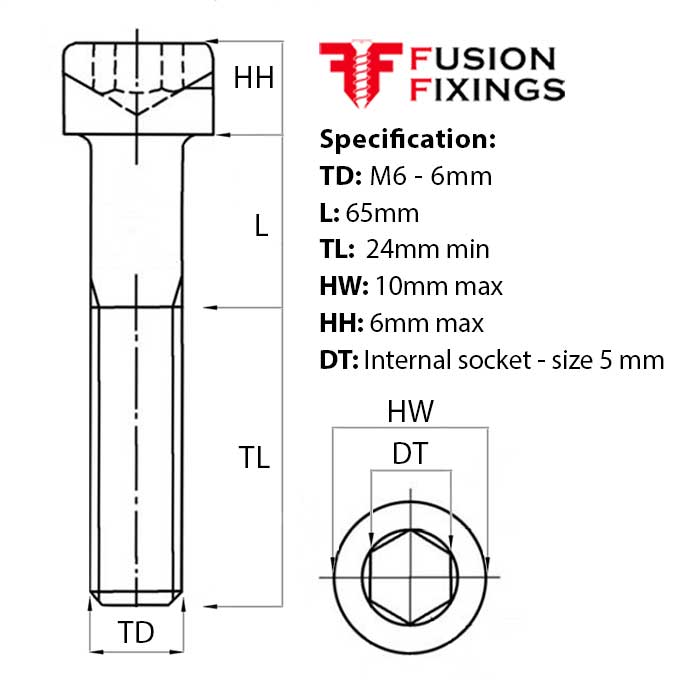

M6 socket cap head screw specification:

• Diameter (TD): M6 - 6mm
• Length (L): 65mm
• Thread length (TL): 24mm min
• Head width (HW): 10mm max
• Head height (HH): 6mm max
• Head type: Cap head
• Recess type (DT): Internal hex drive (Size 5mm)
• Pitch: 1mm
• Material: Grade 12.9 steel
• Finish: BZP Bright zinc plated
• Conformality: DIN 912


The M6 socket cap head screw is part of an extensive range of socket cap head screws available from Fusion Fixings with bulk discounts.

Don’t forget the hex full nuts?

Don’t forget the hex full nuts for use with your socket cap head screws. Take a look at the BZP M6 hex full nuts.

Do you need socket cap head screws with higher corrosion resistance?

If you need cap head screws with the versatility that high corrosion resistance offers, take a look at our A2 stainless steel, M6 x 65mm socket cap head screw.

For the best resistance to corrosion take a look at our A4 stainless steel M6 x 65mm socket cap head screw which offer marine grade corrosion resistance.
