M16 x 180mm Socket Cap Head Screw, Self Colour, DIN 912

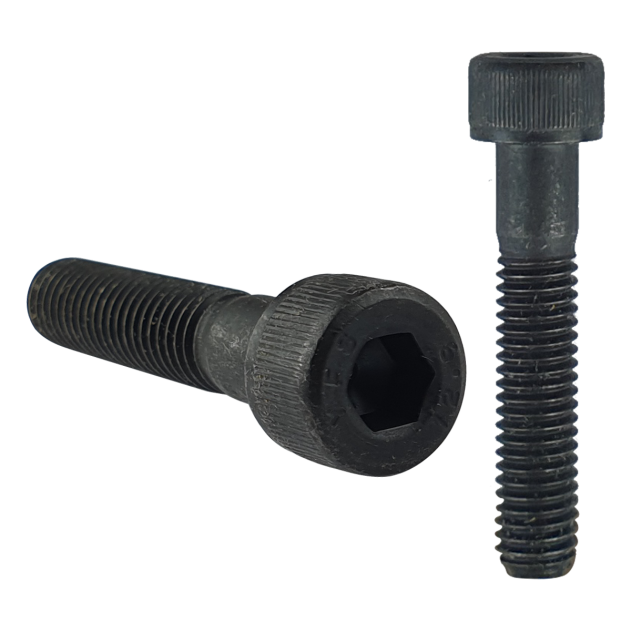

M16 socket cap head screw

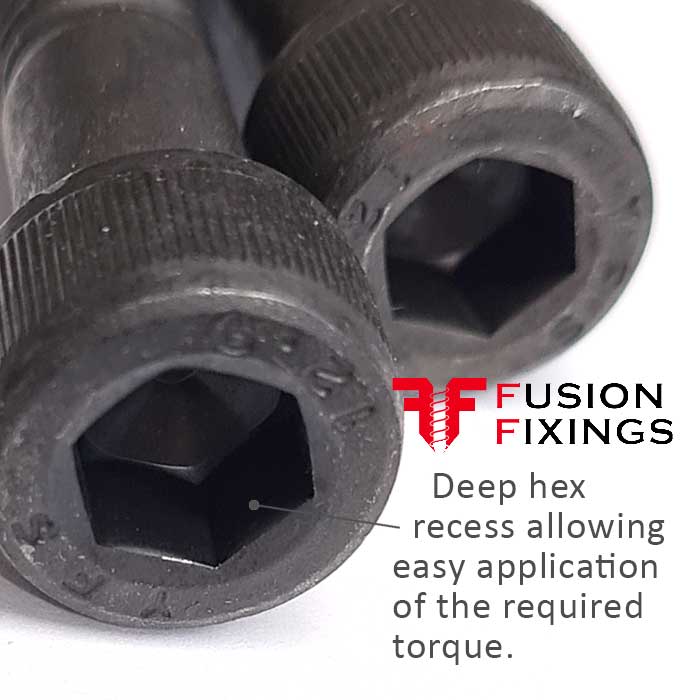

M16 cap head screw with a deep internal socket recess for easy installation, application of torque for a secure hold, and loosening if needed.

A self-colour machine screw with a distinctive cylindrical head that’s designed to achieve high torque and manufactured from grade 12.9 high tensile steel for strength.

Installed with an Allen wrench or hex key sees them widely used including situations where space is tight and where a secure hold is needed.

Available in many sizes and lengths, these screws are used by DIY enthusiasts and professionals across many diverse sectors include automotive, aerospace, machinery, and construction.

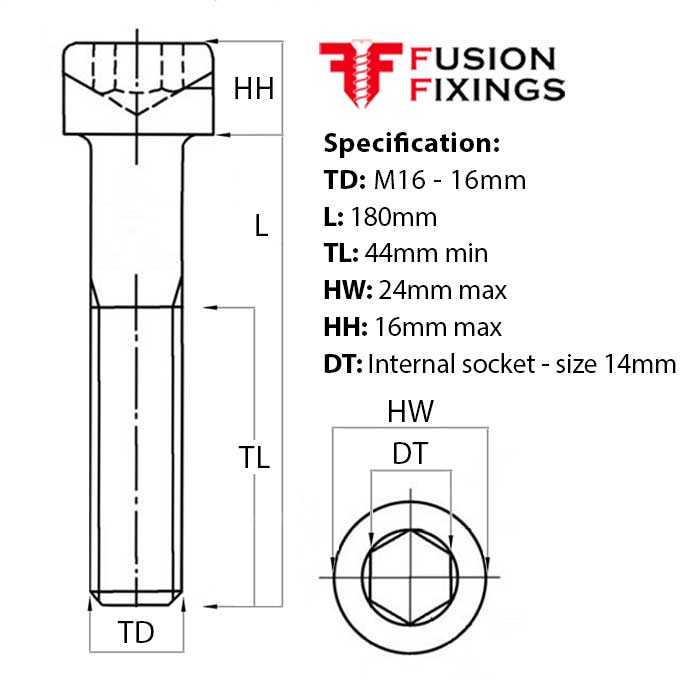

M16 socket cap head screw specification:

• Diameter (TD): M16 - 16mm

• Length (L): 180mm

• Thread length (TD): 44mm min
• Head width (HW): 24mm max

• Head height (HH): 16mm max

• Head type: Cap Head

• Recess type (DT): Internal hex drive (Size 14mm)

• Pitch: 2mm

• Material: Grade 12.9 high tensile steel

• Conformity: DIN 912

An M16 self-colour socket cap head screw is part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.
