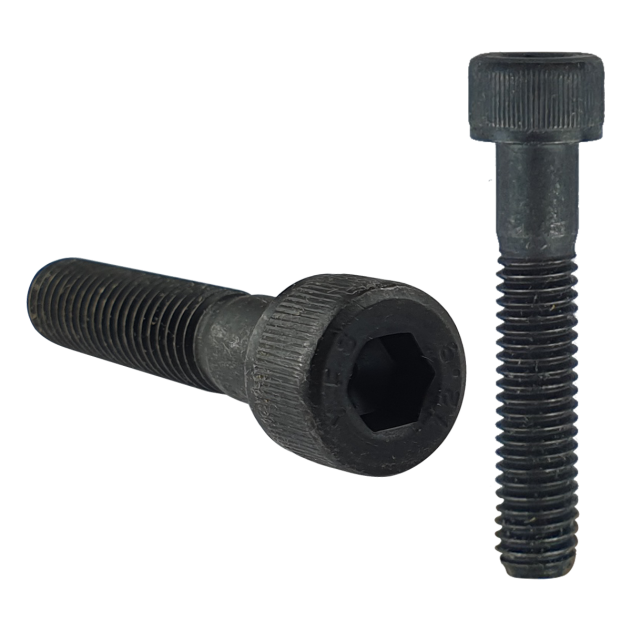

M2.5 x 10mm Socket Cap Head Screw, Self-Colour, DIN 912

M2.5 socket head cap screw

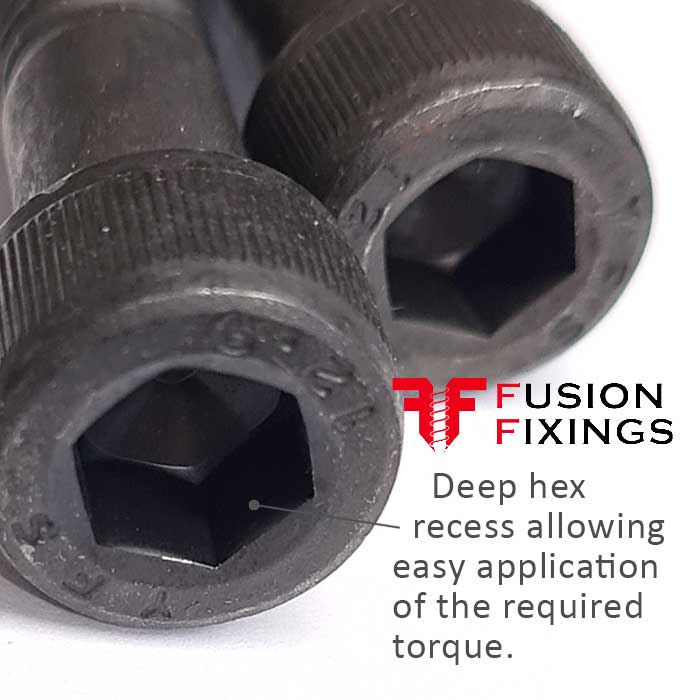

Cap head screw with a deep hex drive recess for easy application of torque, installation, and loosening if needed.

Installed with an Allen wrench or hex key sees them widely used. Also known as Allen key bolts, cap head bolts, or socket screws and manufactured from grade 12.9 high tensile steel for strength.

Ideally suited for situations where space is tight and where a high clamping force is needed.

Available in a large number of sizes and lengths, these screws are used across many diverse sectors. These include automotive, aerospace, machinery, and construction.

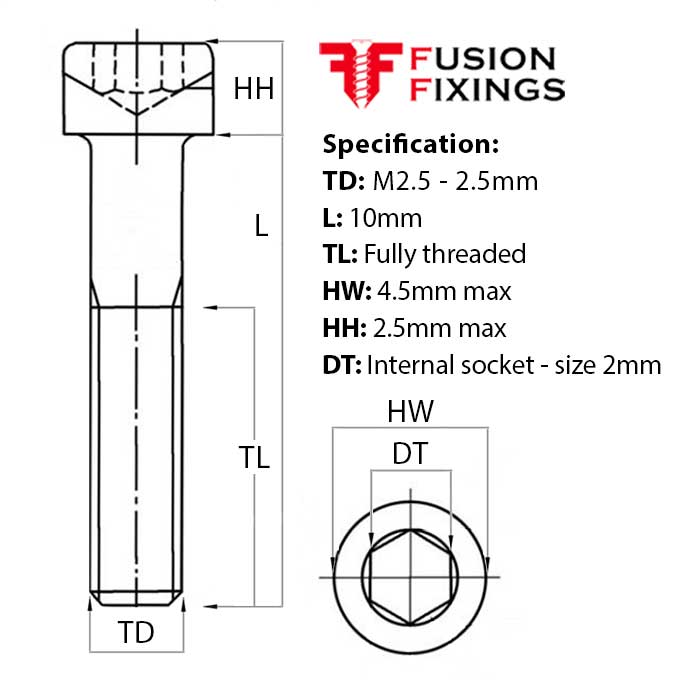

M2.5 socket cap head screw specification:

• Diameter (TD): 2.5mm
• Length (L): 10mm
• Thread length (TL): Fully threaded
• Head width (HW): 4.5mm max
• Head height (HH): 2.5mm max
• Head type: Cap Head
• Recess type (DT): Internal hex drive (Size 2mm)
• Pitch: 0.45mm
• Material: Grade 12.9 high tensile steel
• Finish: Self colour
• Conformity: DIN 912

A self-colour socket cap head screw part of an extensive range available from Fusion Fixings.

Corrosion resistant cap had screws

Do you need a socket cap had screw with increased resistance to corrosion? If so, take a look at our M2.5 x 10mm socket cap head screws in A2 stainless steel.

For the highest level of corrosion resistance see our  M2 socket cap head screws in A4 stainless steel, as the A4 variety offers marine grade corrosion resistance.
