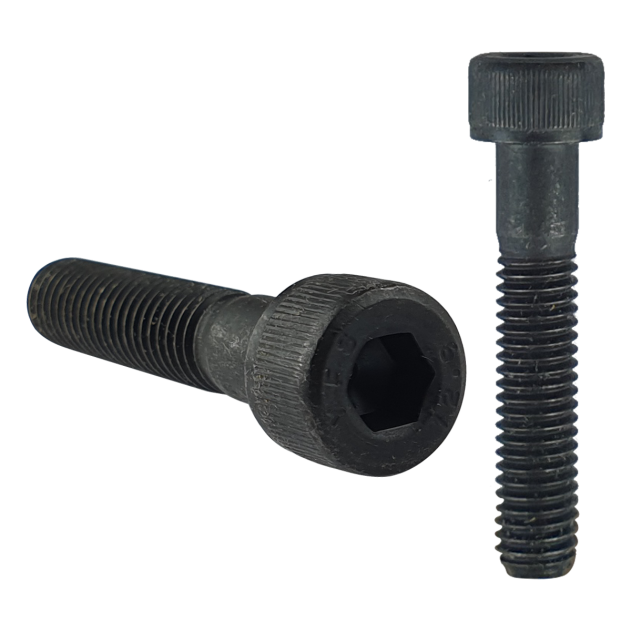

M3 x 5mm Socket Cap Head Screw, Self Colour, DIN 912

5mm socket head cap screw

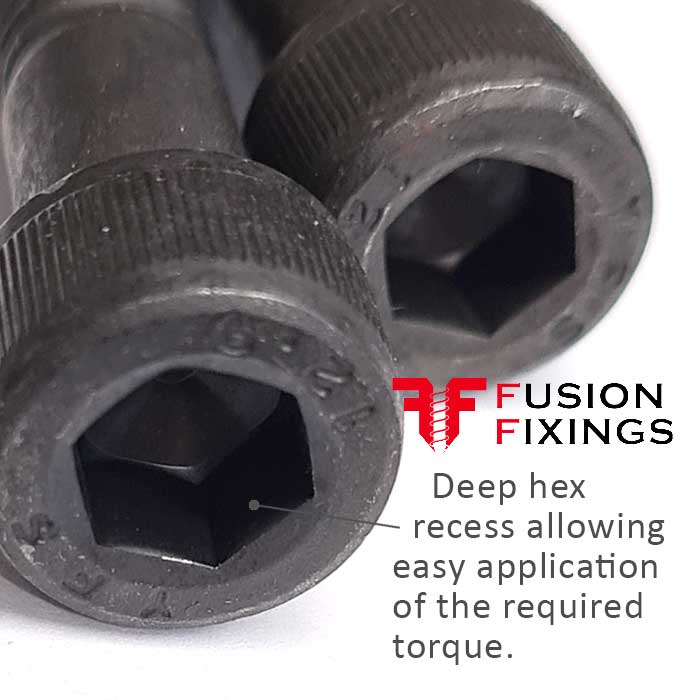

M3 cap head screw with a deep internal socket allowing easy installation, loosening, and the application of torque for a secure hold.

A machine screw installed with an Allen wrench or hex key which sees them widely used. Ideally suited for situations where space is tight and where a secure hold is needed.

Manufactured form 12.9 high tensile steel for reliability with a large number of sizes and lengths available.

The screws are used by both DIY enthusiasts and professionals across many diverse sectors including automotive, aerospace, machinery, electronics, and construction.

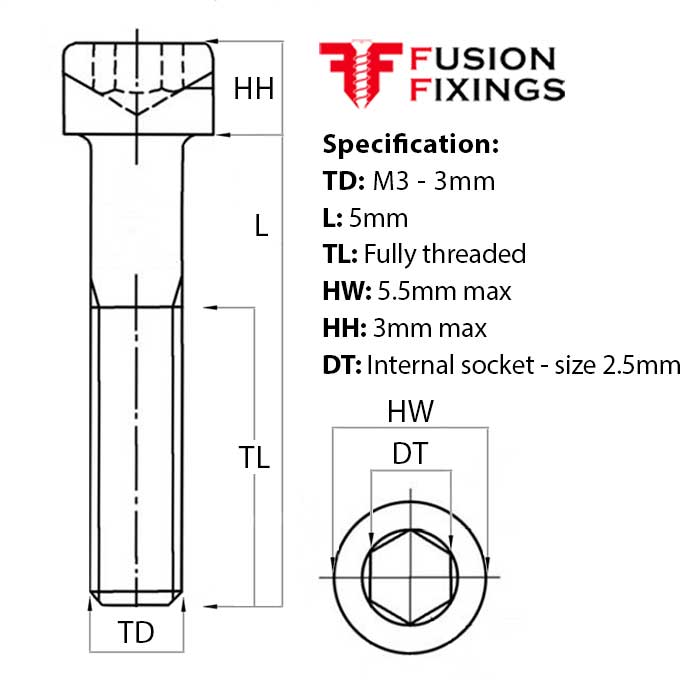

M3 socket cap head screw specification:

• Diameter (TD): 3mm
• Length (L): 5mm
• Thread length (TL): Fully threaded
• Head width (HW): 5.5mm max
• Head height (HH): 3mm max
• Head type: Cap Head
• Recess type (DT): Internal hex drive (Size 2.5mm)
• Pitch: 0.50mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformity: DIN 912

A self-colour socket cap head screw part of an extensive range available from Fusion Fixings.

Corrosion resistant cap had screws

Do you need a socket cap had screw with increased resistance to corrosion? If so, take a look at our M3 x 5mm socket cap head screws in A2 stainless steel.

For the highest level of corrosion resistance see our M3 x 5mm socket cap head screws in A4 stainless steel as the A4 variety offers marine grade corrosion resistance.
