M33 x 150mm Socket Cap Head Screw, Self Colour, DIN 912

M33 cap head screw

Cap head screw with a deep internal socket drive allowing easy installation, loosening, and the application of torque for a secure hold.

With a compact cylindrical head that’s ideal when space is tight and combined with a deep socket recess allows torque to be applied easily with an Allen key making them a popular choice.

A self-colour machine screw manufactured in grade 12.9 high tensile steel for reliability and in accordance with DIN 912 standards.

Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.

Available in a large number of sizes and lengths, these cap head screws are widely used across many diverse sectors including automotive, aerospace, machinery, and construction.

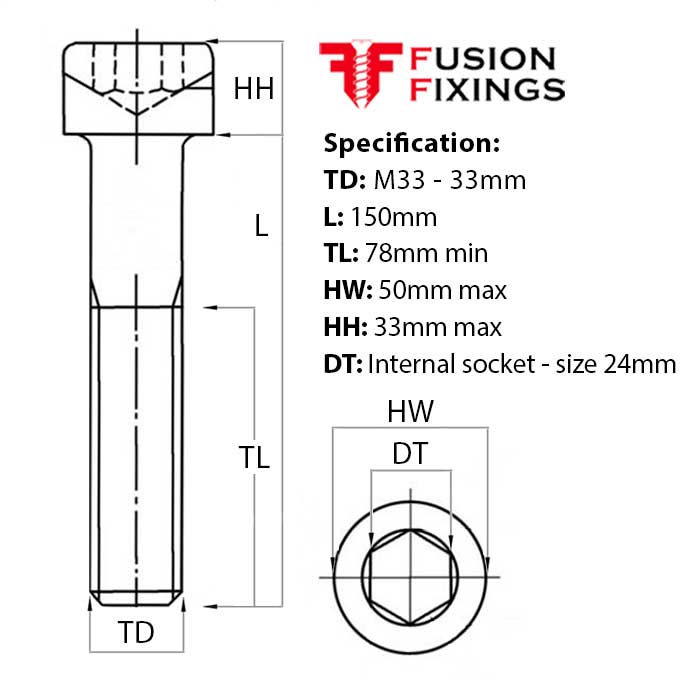

M33 socket cap head screw specification:

• Diameter (TD): M33 - 33mm
• Length (L): 150mm
• Thread length (TL): 78mm min
• Head width (HW): 50mm max
• Head height (HH): 33mm max
• Head type: Cap head
• Recess type (DT): Internal hex drive (Size 24mm)
• Pitch: 3.5mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformity: DIN 912

Used by DIY enthusiasts and professionals alike and part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.
