M36 x 120mm Socket Cap Head Screw, Self Colour, DIN 912

M36 cap head screw

M36 cap head screw with a deep internal socket allowing easy installation, loosening, and the application of torque for a secure hold.

With a compact cylindrical head that’s ideal when space is tight and combined with a deep socket recess allows torque to be applied easily with an Allen key making them a popular choice.

A self-colour machine screw manufactured in grade 12.9 high tensile steel for reliability and in accordance with DIN 912 standards.

Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.

Available in a large number of sizes and lengths, these cap head screws are widely used across many diverse sectors including automotive, aerospace, machinery, and construction.

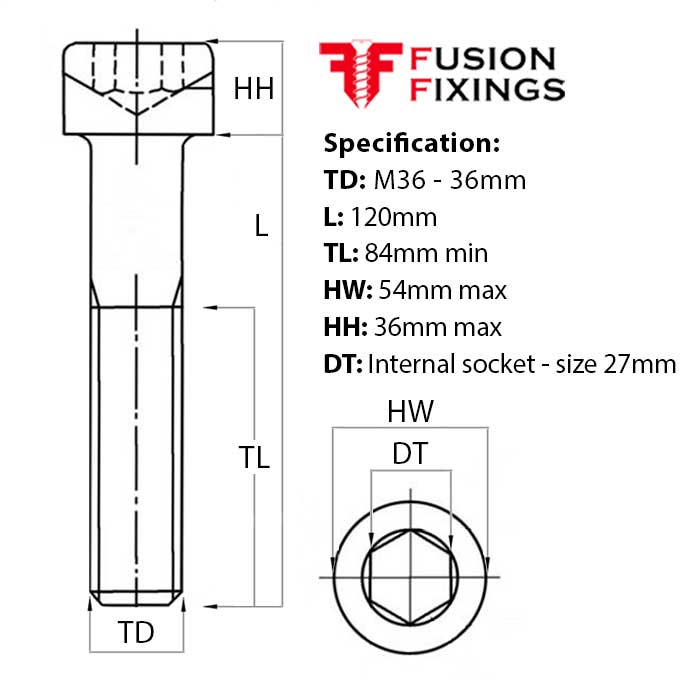

M36 socket cap head screw specification:

• Diameter (TD): M36 - 36mm
• Length (L): 120mm
• Thread length (TH): 84mm min
• Head width (HW): 54mm max
• Head height (HH): 36mm max
• Head type: Cap head
• Recess type (DT): Internal hex drive (Size 27mm)
• Pitch: 4mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformality: DIN 912


Used by DIY enthusiasts and professional alike and part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.
