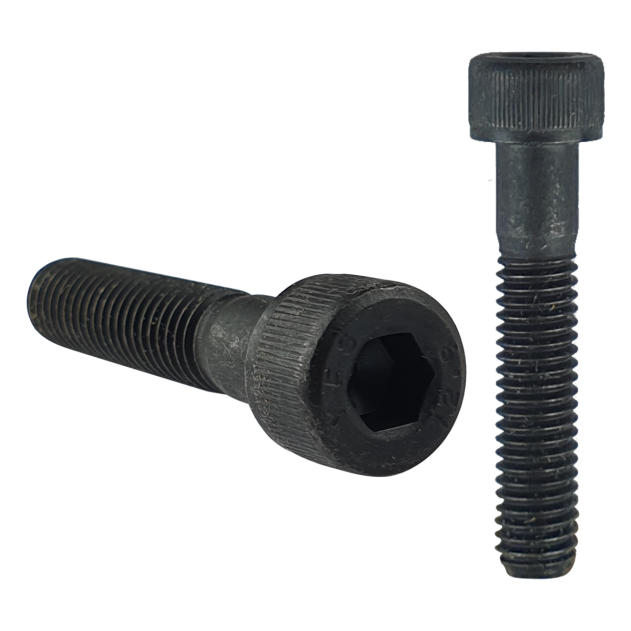

M4 x 5mm Socket Cap Head Screw, Self Colour, DIN 912

M4 socket head cap screw

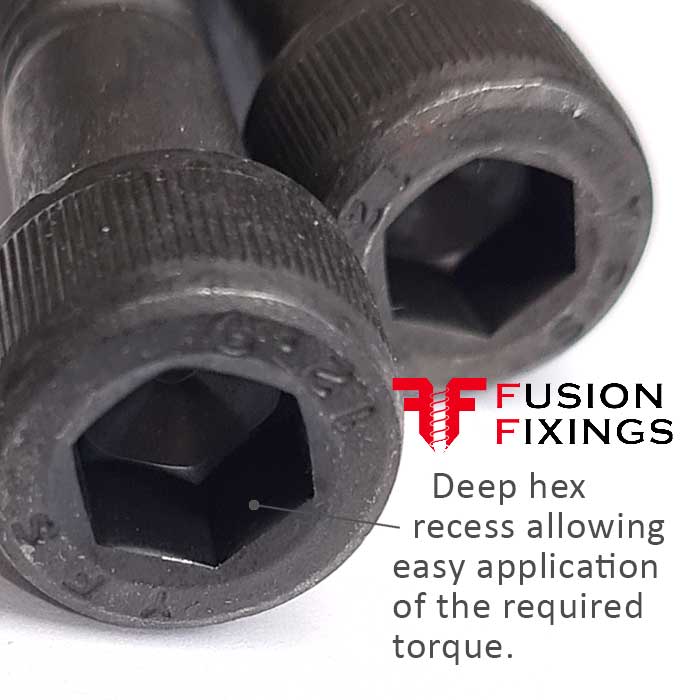

M4 cap head screw with a deep hex drive recess for easy installation and loosening if needed. Also allows the easy application of torque with high clamping force.

Manufactured from grade 12.9 high tensile steel for reliability. A socket screw that’s installed with an Allen wrench or hex key sees them widely used.

Ideally suited for situations where space is tight and where a high clamping force is needed. A versatile screw and often used with a pre-drilled hole for a flush finish.

Available in a large number of sizes and lengths, these socket cap head screws are used by both DIY enthusiasts and professionals across many diverse sectors. These include automotive, aerospace, machinery, electronics, and construction.

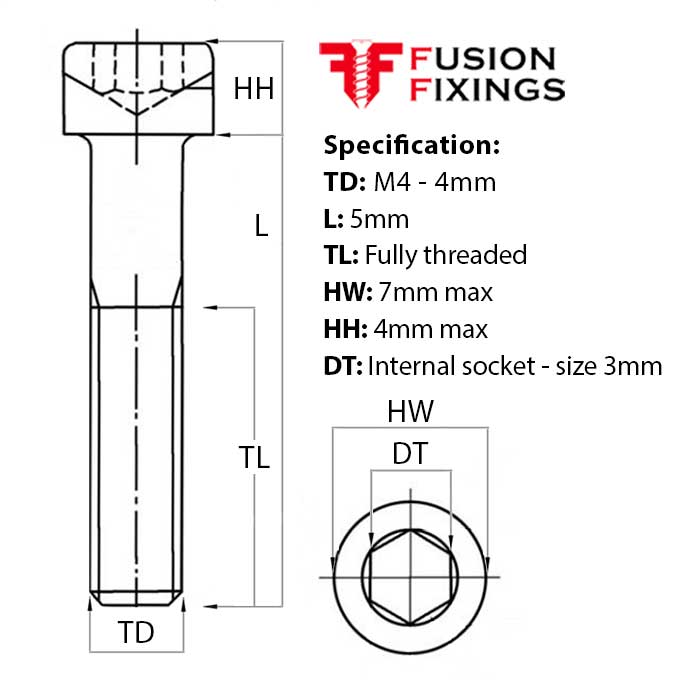

M4 socket cap head screw specification:

• Diameter (TD): 4mm
• Length (L): 5mm
• Thread length (TL): Fully threaded
• Head width (HW): 7mm max
• Head height (HH): 4mm max
• Head type: Cap Head
• Recess type (DT): Internal hex drive (Size 3mm)
• Pitch: 0.70mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformity: DIN 912

A self-colour socket cap head screw part of an extensive range available from Fusion Fixings.

Corrosion resistant cap had screws

Do you need a socket cap had screw with increased resistance to corrosion?

If so, take a look at our M4 x 5mm socket cap head screw in A2 stainless steel, or our M4 x 5mm socket cap head screws in A4 stainless steel for the highest resistance to corrosion.

Why choose Fusion Fixings?

A family run business with over 40 years of experience in the construction and fixings industry. Our aim is to bring you a range of quality, reliable, fixings and fasteners at great prices.

With quantities starting from just one to as many as you like, with bulk price offers across many of our products.
