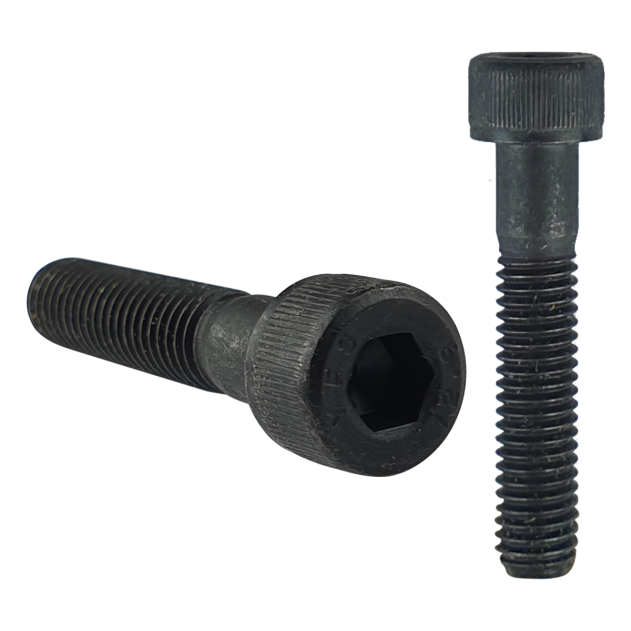

M5 x 16mm Socket Cap Head Screw, Self Colour, DIN 912
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
M5 socket cap head screw

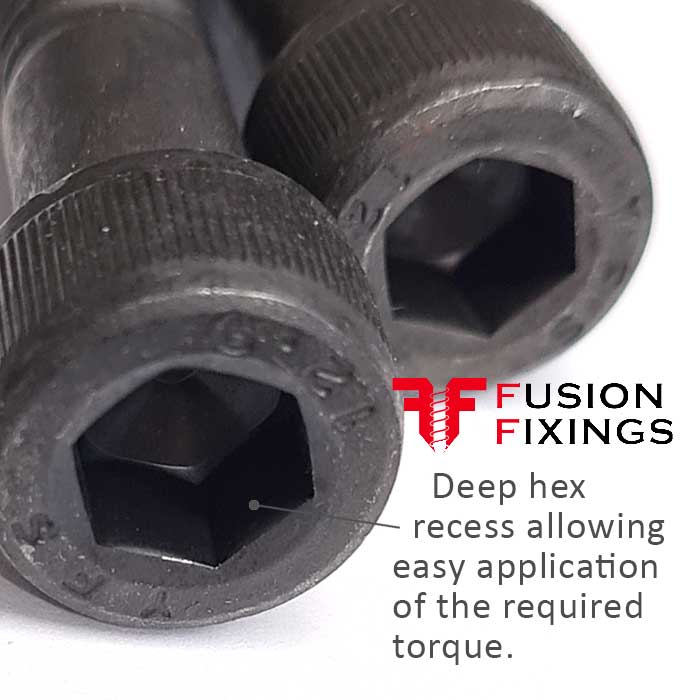

M5 cap head screw with a deep internal socket drive allowing easy installation, loosening, and the application of torque for a secure hol. . .
M5 socket cap head screw
M5 cap head screw with a deep internal socket drive allowing easy installation, loosening, and the application of torque for a secure hold.
A self-colour machine screw manufactured from grade 12.9 high tensile steel for strength with a compact cylindrical head that’s ideal when space is tight.
Installed with an Allen wrench or hex key which sees them widely used. Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.
Available in a large number of sizes and lengths, these socket cap head screws are used by both DIY enthusiasts and professionals across many diverse sectors.
These include automotive, aerospace, machinery, electronics, and construction.

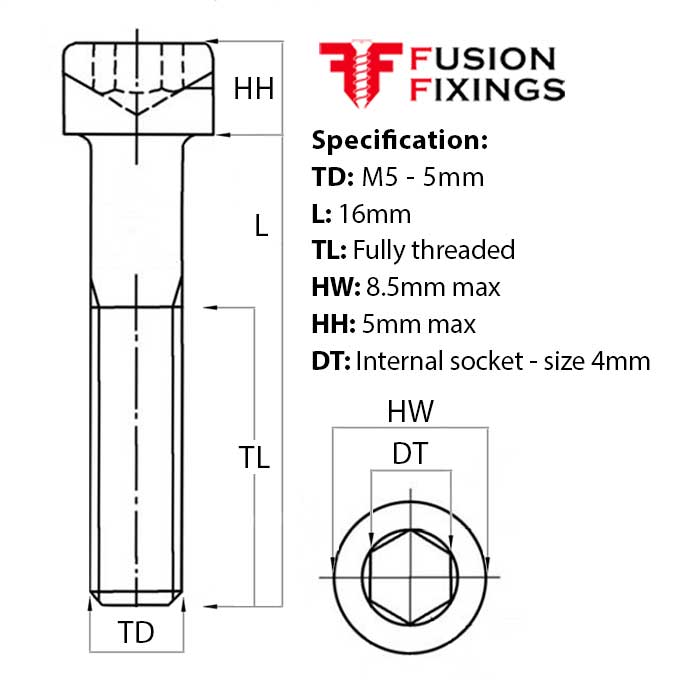

M5 socket cap head screw specification:
- Diameter (TD): M5 - 5mm
- Length (L): 16mm
- Thread length (TL): Fully threaded
- Head width (HW): 8.5mm max
- Head height (HH): 5mm max
- Head type: Cap Head
- Recess type (DT): Internal hex drive (Size 4mm)
- Pitch: 0.80mm
- Material: Grade 12.9 high tensile steel
- Finish: Self colour
- Conformity: DIN 912
A self-colour socket cap head screw part of an extensive range available from Fusion Fixings.
Don't forget the self-colour M5 hex nuts
Don't forget the hex nuts to go with the cap head screws? Take a look at our self colour M5 hex nuts.
Looking for a cap head screw with corrosion resistance?
If you need a socket cap head screw with a high level of corrosion resistance, take a look at our A2 stainless steel M5 x 16mm socket cap head screws.
For the highest level of corrosion resistance, Fusion Fixings supply M5 x 16mm socket cap head screws in A4 stainless steel which offer a marine grade resistance to corrosion.
