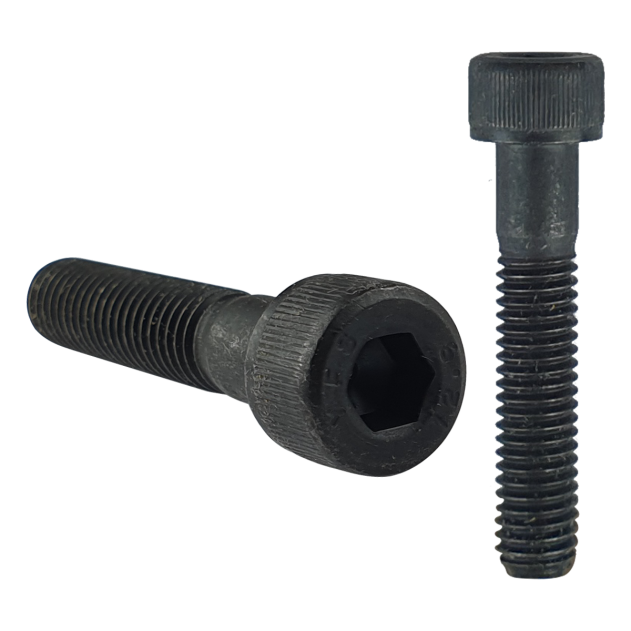

M5 x 75mm Socket Cap Head Screw, Self Colour, DIN 912

M5 socket cap head screw

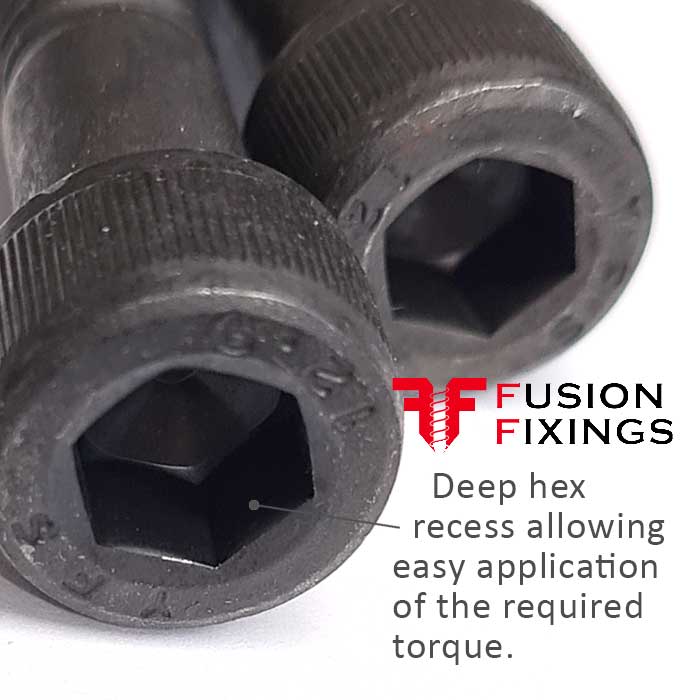

M5 cap head screw with a deep internal socket drive allowing easy installation, loosening, and the application of torque for a secure hold.

A self-colour machine screw manufactured from grade 12.9 high tensile steel with a compact cylindrical head that’s ideal when space is tight.

Installed with an Allen wrench or hex key which sees them widely used.

Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.

Available in a large number of sizes and lengths, these socket cap head screws are used by both DIY enthusiasts and professionals across many diverse sectors, including automotive, aerospace, machinery, electronics, and construction.

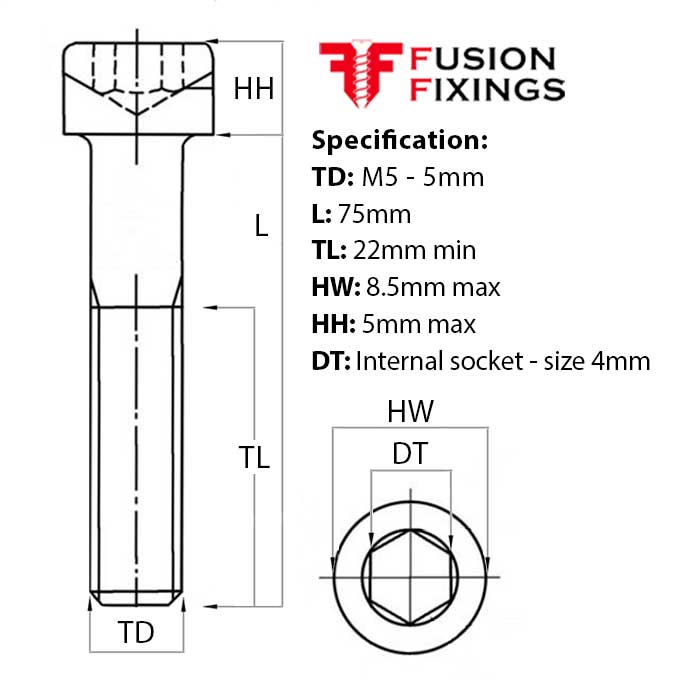

M5 socket cap head screw specification:

• Diameter (TD): 5mm
• Length (L): 75mm
• Thread length (TL): 22mm min
• Head width (HW): 8.5mm max
• Head height (HH): 5mm max
• Head type: Cap Head
• Recess type (DT): Internal hex drive (Size 4mm)
• Pitch: 0.80mm
• Material: Grade 12.9 high tensile steel
• Conformity: DIN 912

A self-colour socket cap head screw part of an extensive range available from Fusion Fixings.

Why choose Fusion Fixings?

A family run business with over 40 years of experience in the construction and fixings industry. Our aim is to bring you a range of quality, reliable, fixings and fasteners at great prices.

With quantities starting from just one to as many as you like, with bulk price offers across many of our products.
