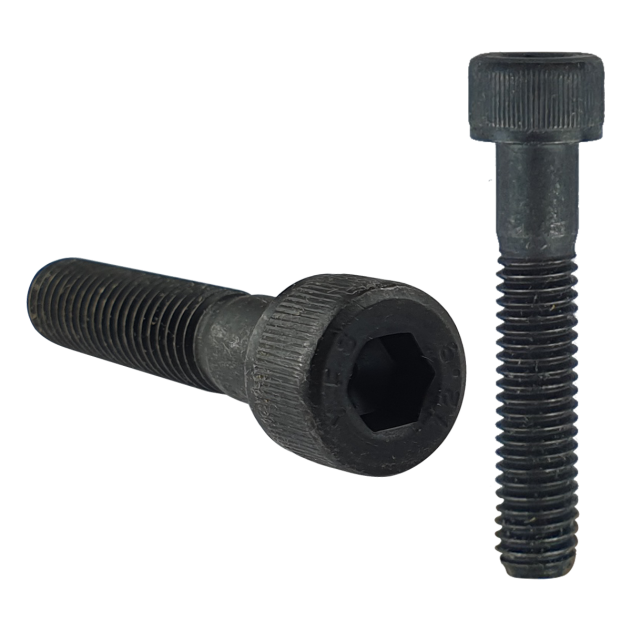

M6 x 40mm Socket Cap Head Screw, Self Colour, DIN 912

40mm socket head cap screw

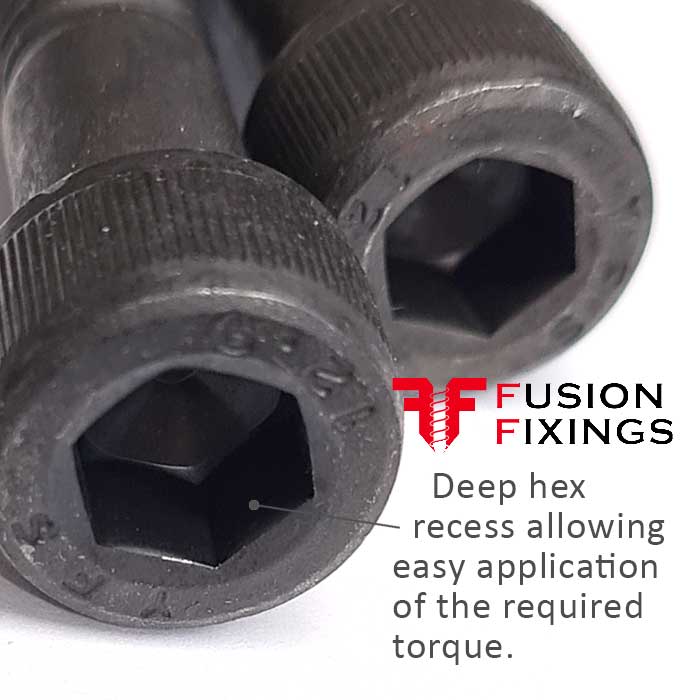

Cap head screw with a compact cylindrical head and deep internal socket (hex) drive for easy installation, loosening, and the application of the required torque for a secure hold.

Manufactured from grade 12.9 high tensile steel for strength and installed with an Allen wrench or hex key (Allen key) sees them widely used.

A self-colour machine screw also known as Allen key bolts, cap head bolts, or socket screws.

Available in a large number of sizes and lengths, these screws are used across many diverse sectors. These include automotive, aerospace, machinery, and construction.

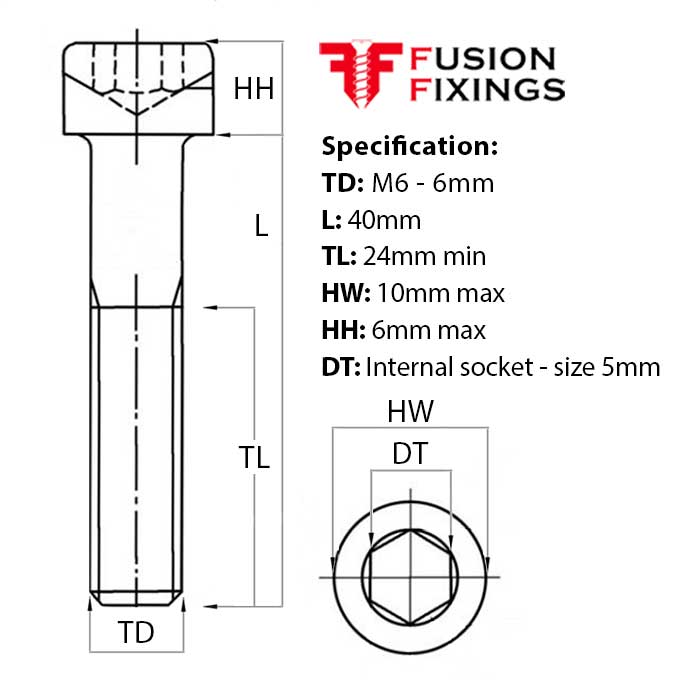

M6 socket cap head screw specification:

• Diameter (TD): M6 - 6mm
• Length (L): 40mm
• Thread length (TL): 24mm min
• Head width (HW): 10mm max
• Head height (HH): 6mm max
• Head type: Cap Head
• Recess type (DT): Internal hex drive (Size 5mm)
• Pitch: 1mm
• Material: Grade 12.9 high tensile steel
• Conformity: DIN 912

A self-colour socket cap head screw part of an extensive range available from Fusion Fixings with bulk discounts.
