8mm (M5) x 40mm, Extractable Dowel Pin, Hard & Ground, Self-Colour, DIN 7979D
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
Extractable Metal Dowel Pin x 40mm
Extractable metal dowel pin, with an M5 internal thread, ideal for accurate positioning and locating of parts every time. Prima. . .
Extractable Metal Dowel Pin x 40mm
Extractable metal dowel pin, with an M5 internal thread, ideal for accurate positioning and locating of parts every time. Primarily used in mould making, jigs, fixtures, and machinery.
An M5 (8mm) x 40mm extractable metal dowel pin with an internal thread which can be used to extract the pin after installation if needed. The dowels also have a slight flat edge to ensure air can escape when installed.

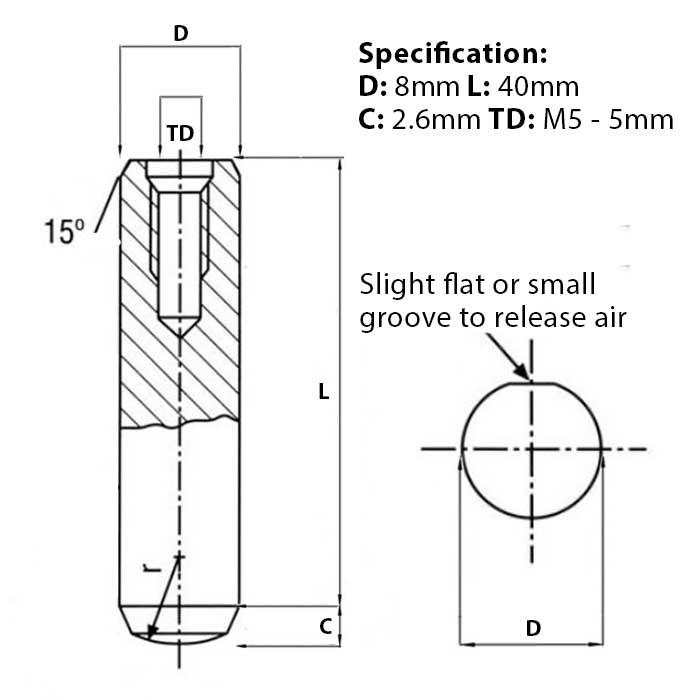

8mm Dowel Pin Specifications:
- Diameter (D): 8mm
- Thread Diameter (TD): M5 – 5mm
- Length (L): 40mm (C): 2.6mm
- Material: Hard & Ground Steel
- Conformity: DIN 7979D
Manufactured to DIN 7979D standards and part of a growing range of extractable metal dowel pins held in stock with bulk price discounts
