1/4″ UNF x 2 1/2″ Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel

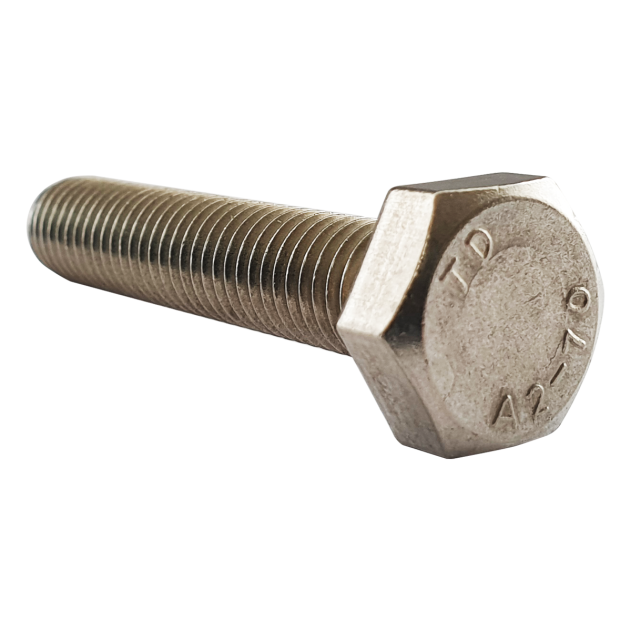

Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
1/4″ UNF hex set screw
UNF hex set screw manufactured in A2 stainless steel offering high corrosion resistance. Unlike hexagon bolts, which are partially threade. . .
1/4″ UNF hex set screw
UNF hex set screw manufactured in A2 stainless steel offering high corrosion resistance. Unlike hexagon bolts, which are partially threaded, the hex head set screw has a fine thread extending up to the underside of the head. This ensures a secure and tight fixing every time without the worry of running out of thread.
Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.
Versatile and when coupled with the 1/4″ UNF nuts sees these hex head set screws widely used across many industries by DIY enthusiasts and professionals alike.

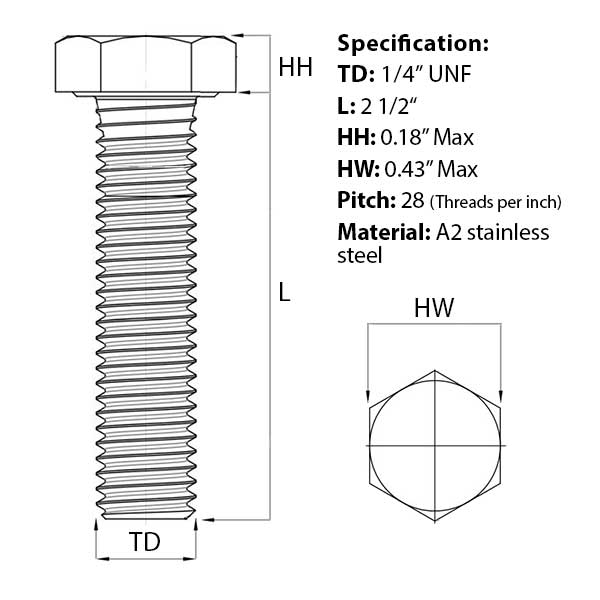

1/4″ UNF set screw specification
- Thread diameter (TD): 1/4″ UNF
- Length (L): 2 1/2″
- Head height (HH): 0.18″ max
- Head width (HW): 0.43″ max
- Thread Pitch (TP): 28 (threads per inch)
- Material: A2 stainless steel
- Conformity: ASME B18.2.1
Part of a comprehensive range of A2 stainless steel UNF hex set screws available from Fusion Fixings. Quantities start for just one with bulk price discounts.
