3.2 x 10mm Large Flange Pop Rivets (Blind Rivet) Aluminium - Steel, Grip Range 5 - 7mm

Large flange pop rivets

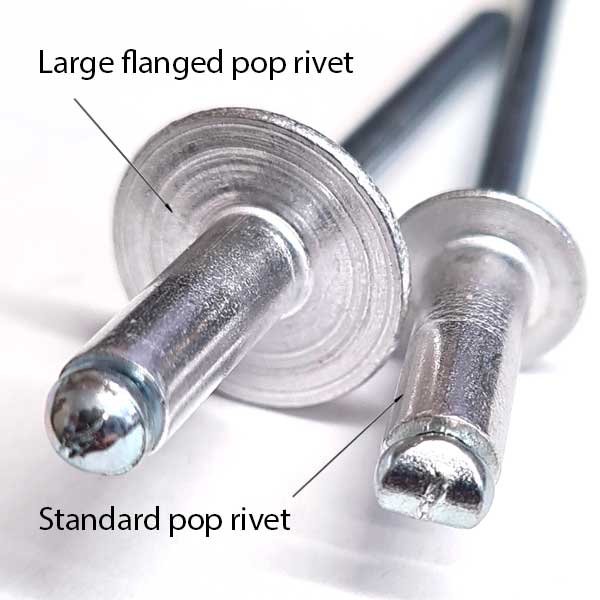

3.2mm pop rivets with a grip range of 5 - 7mm. Manufactured with a large flange to distribute the tension over a larger area making them ideal for softer material.

Designed to join material together where there is no access to the back of the material.
Manufactured with two core sections, which includes an aluminium rivet body and a zinc plated steel mandrel.

The mandrel is pulled into the rivet gun which in turn pulls the pop rivet body and compresses it against the blind side of the material.

This ensures a secure hold and once installed the mandrel then snaps off to leave a clean permanent finish.

Flange pop rivets are an effective threadless fastener ideal when there is no access to the back of the material. Used across many industries by DIY enthusiasts and professionals alike.

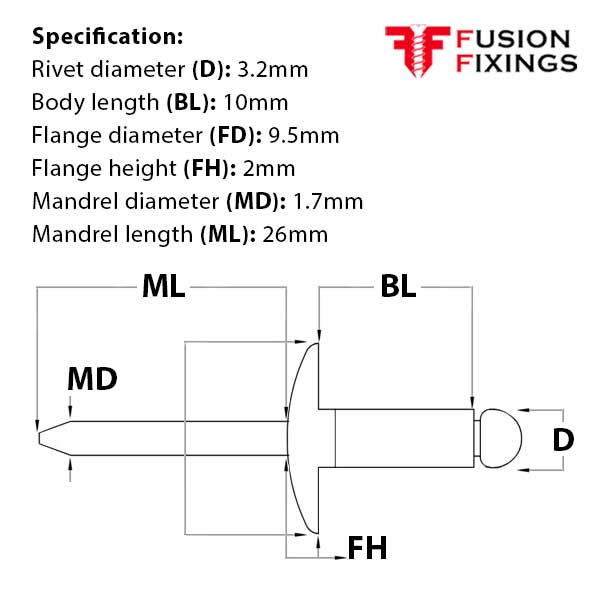

3.2mm blind rivet specification:

• Rivet diameter (D): 3.2mm
• Body length (BL): 10mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 9.5mm
• Flanged height (FH): 2mm
• Mandrel diameter (MD): 1.7mm
• Mandrel length (ML): 26mm
• Mandrel material: Steel
• Hole size: 3.3mm
• Grip range: 5mm - 7mm
• Sheer strength: 740
• Tensile strength: 980

Part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

Pop rivets with more corrosion resistance?

If you need pop rivets with more corrosion resistance, take a look at our growing range of stainless steel pop rivets.
