3/8 UNF Nyloc Nut, Bright Zinc Plated

3/8 UNF Nyloc Nut

3/8 UNF Nyloc nut with a nylon insert that provides a locking action preventing the nut from loosening due to vibration.

The nylon insert also creates a seal against the ingress of liquids making this hex nut a versatile choice.

When installed the thread from the fixing cuts into the nylon insert for a tighter hold which sees them used where vibration and movement can be a concern.

A versatile UNF hex nut Manufactured with a (UNF) unified fine thread and in grade 6 steel with a bright zinc plating (BZP).

Used by both DIY enthusiasts and professionals alike across numerous industries including automotive, aerospace, machinery, and general construction.

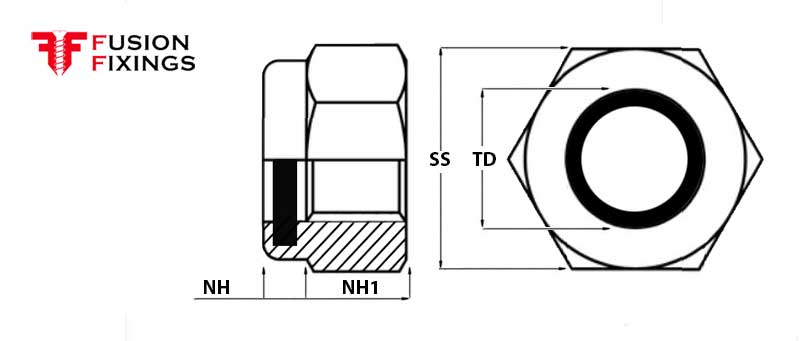

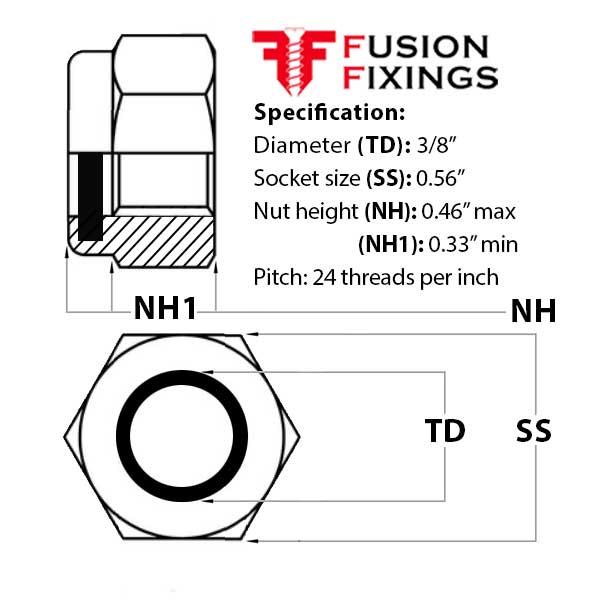

3/8 UNF Nyloc Nut Specification

• Diameter (TD): 3/8” UNF

• Nut width / socket size (SS): 0.56”

• Nut height (NH): 0.46” max - (NH1): 0.33” min

• Pitch: 24 threads per inch

• Material: Grade 6 steel

• Finish: Bright zinc plated (BZP)

• Insert Material: Nylon

Part of a larger range of Nyloc nuts (nylon lock nuts) available from Fusion Fixings with bulk price discounts.

Do you need a Nyloc nut with high corrosion resistance?

If you need a 3/8 UNF Nyloc nut with high corrosion resistance, take a look at our 3/8 UNF  stainless steel Nyloc nut >
