5-40 UNC x 36" Threaded Bar / Studding A2 (304) Stainless Steel, ASME B18.31.3

5-40 UNC Threaded Bar

A2 stainless steel threaded bar / studding with a high level of corrosion resistance making it a versatile choice.

5-40 threaded bar with an imperial unified national coarse thread (UNC) offering flexibility when conventional bolts aren’t long enough as the threaded bar can be cut to length.

The coarse nature of the thread also resists stripping and is often a good choice for general purpose applications. Like UNF threaded rod, the UNC threaded rods are manufactured to be installed in areas where they can be subject to high levels of tension and pressure.

Whether it’s cut to length or used whole, coupled with corresponding nuts & washers makes the threaded rod a useful component for many situations.

Used across many industries including construction, agriculture, and manufacturing which sees it used by both DIY enthusiasts and professionals alike.

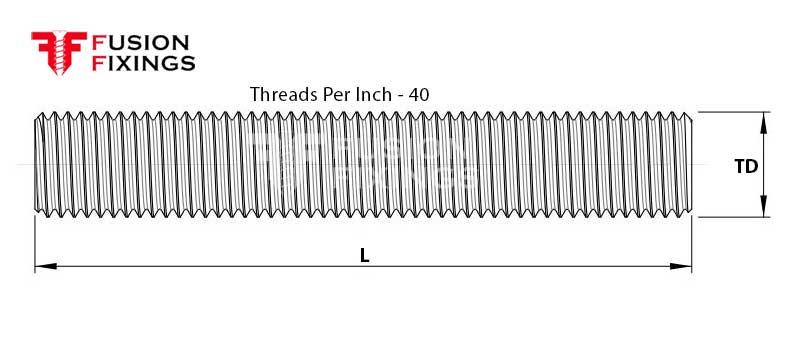

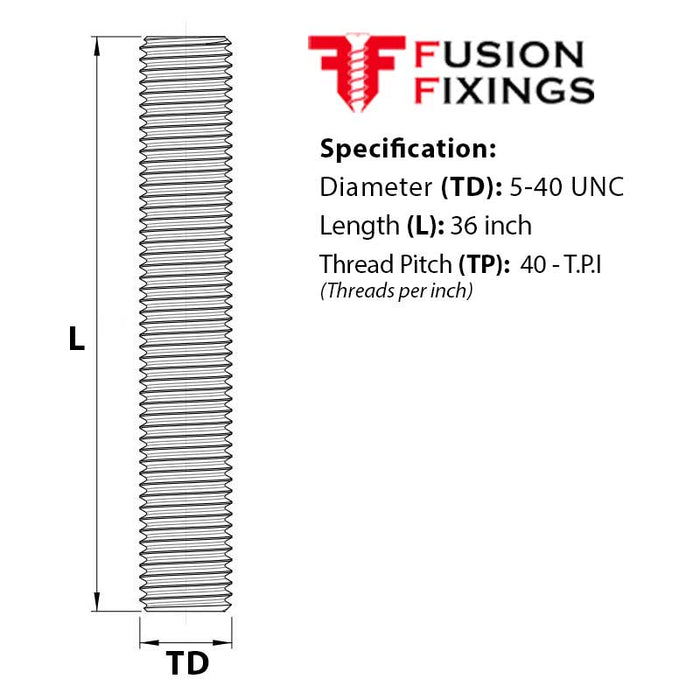

5-40 UNC threaded bar specification:

• Diameter (TD): 5-40
• Length (L): 36″
• Thread Pitch (TP): 40 (threads per inch)
• Material: A2 (304) stainless steel
• Conformity: ASME B18.31.3

Also known in the trade as studding, all thread, threaded rod, and stud, the stainless-steel threaded bar is part of a growing range of threaded bar held in stock at Fusion Fixings, all with competitive prices and bulk discounts.

Take a look at the full range of UNC threaded rod from Fusion Fixings.
