M10 x 120mm Hex Set Screw (Fully Threaded Bolt) 8.8 high tensile steel, BZP, DIN 933

M10 set screw

M10 x 120mm hex head set screw, manufactured in 8.8 high tensile steel with a bright zinc plating for a medium resistance to corrosion.

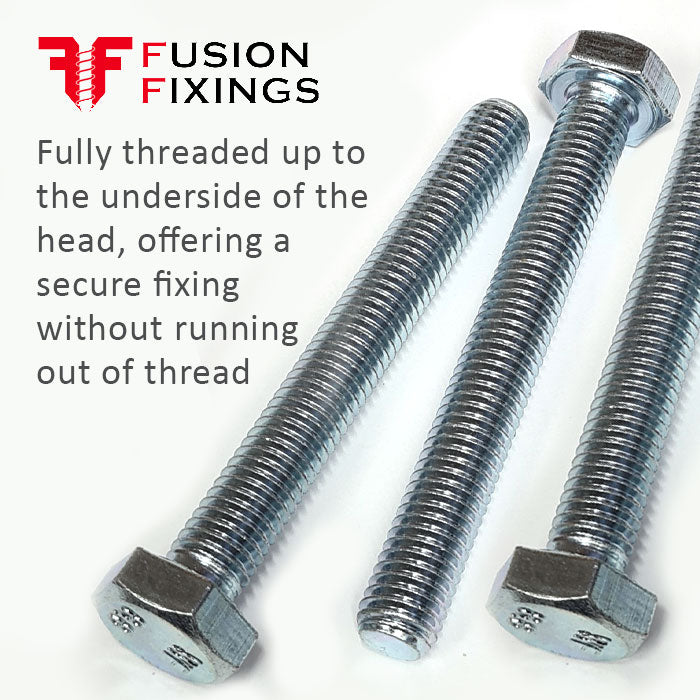

Also known as a ‘fully threaded bolt’, this fully threaded screw has a thread extending up to the underside of the hex head. This ensures a secure and tight connection every time without running out of thread.

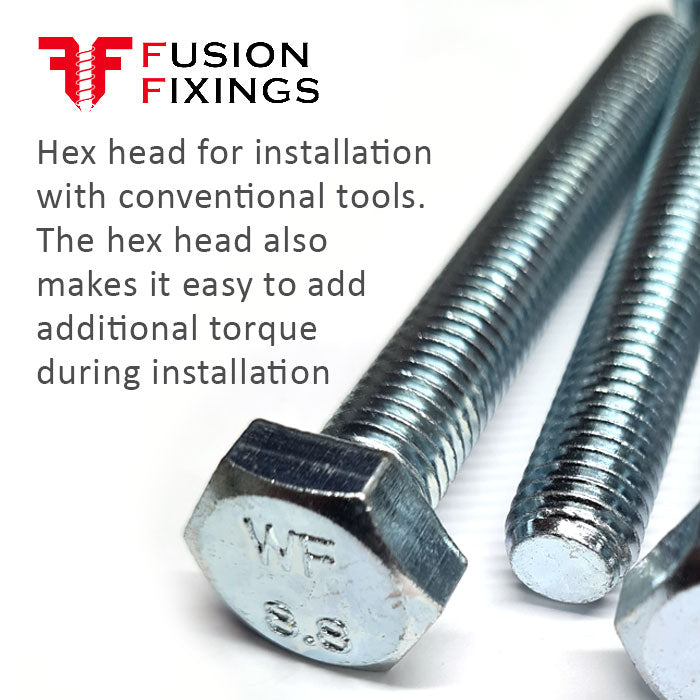

The hex head also allows for the application of higher torque with a range of conventional tools.

Engineered for durability and strength, these hexagon head set screws are widely used across many industries by DIY enthusiasts and professionals alike.

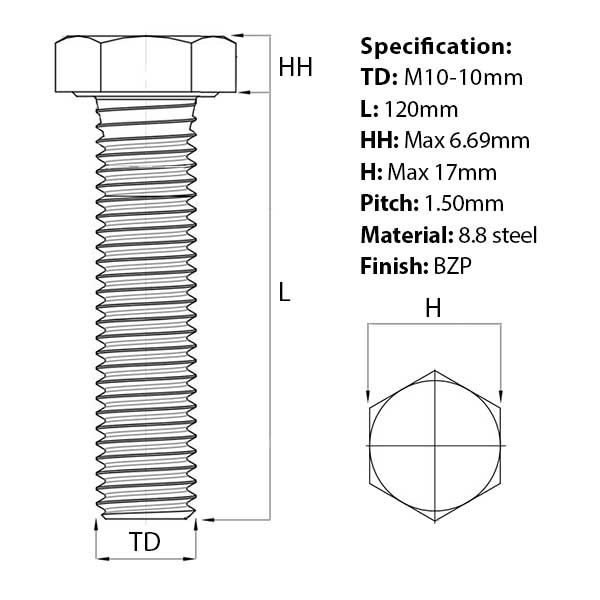

M10 set screw specification

• Thread diameter (TD): 10mm
• Length (L): 120mm
• Head height (HH): 6.69mm Max
• Head width (H): 17mm Max
• Thread pitch: 1.50mm
• Material: 8.8 steel
• Finish: Bright zinc plated (BZP)

Versatile and widely used, this 120mm set screw is part of a comprehensive range of hex head set screws held in stock at competitive price.
