M5 x 45mm Hex Flange Bolt, A2 Stainless Steel DIN 6921

M5 Hex Flange Bolt

M5 hex flange head bolt manufactured in A2 stainless steel for high corrosion resistance, ideal for both internal and external use.

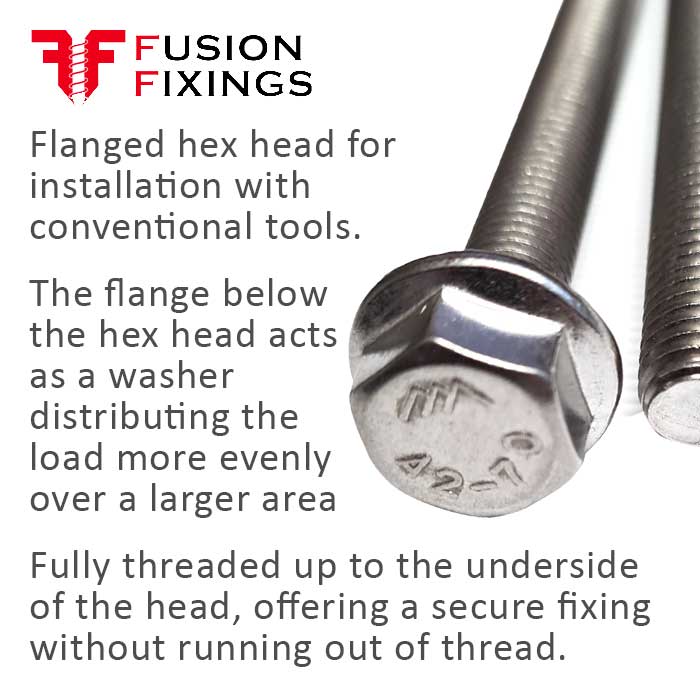

A hex bolt designed with a flange below the hex head that acts as a washer. This flange distributes the load more evenly over a larger area and reducing the risk of damage to the materials surface.

The flange also helps prevent the bolt from loosening over time due to vibrations or movement and increases the clamping force of the bolt, providing a more secure fastening.

With a hex head allowing for installation with a range of conventional tools makes them a versatile choice.

Engineered for reliability and strength and when combined with stainless steel M5 hex nut, sees these flanged bolts widely used across many industries by both DIY enthusiasts and professionals alike.

M5 hex flange bolt specifications

• Thread diameter (TD): M5 - 5mm
• Length (L): 45mm
• Head height (HH): 5.4mm max
• Head width (HW): 8mm max (socket size)Flange diameter (FD): 11.8mm max
• Thread Pitch: 0.8mm
• Material: A2 stainless steel
• Conformity: DIN 6921


Versatile and widely used, the range of hex head flange bolts available from Fusion Fixings is growing.

Looking for a bolt without the flanged head?

If you require a fully threaded hex bolt without the flanged head, take a look at our M5 x 45mm hex set screw. A fully threaded hex head bolt, which like the flanged hex bolt, allows installation without the worry of running out of thread.

Here at Fusion Fixings quantities start from just one to as many as you require, with bulk discounts across many ranges.
