M8 x 90mm Socket Cap Head Screws, Self Colour, DIN 912

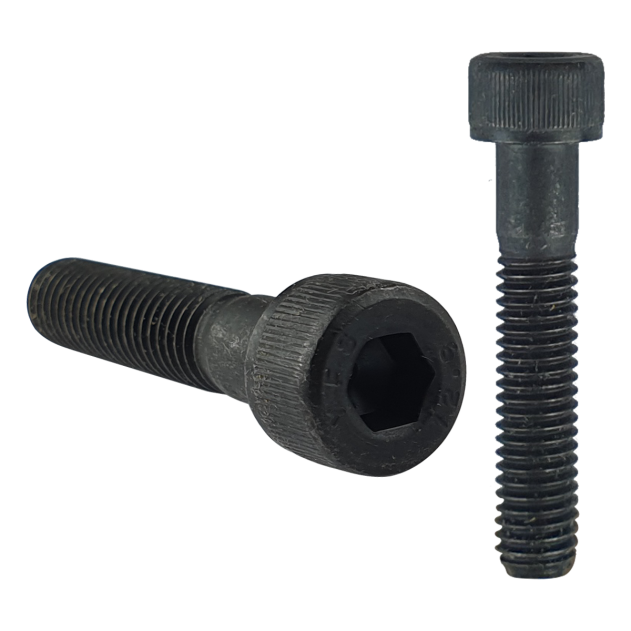

M8 socket head cap screw

Socket cap head screw with a deep internal socket recess allowing you to apply the required torque for a secure hold.

A self-colour machine screw also known as Allen key bolts, cap head bolts, or socket screws and manufactured from grade 12.9 high tensile steel for reliability

Ideally suited for situations where space is tight and where a high clamping force is needed. Installed with an Allen wrench or hex key which sees them widely used.

Available in a large number of sizes and lengths, these screws are used by both DIY enthusiasts and professionals across many diverse sectors. These include automotive, aerospace, machinery, electronics, and construction.

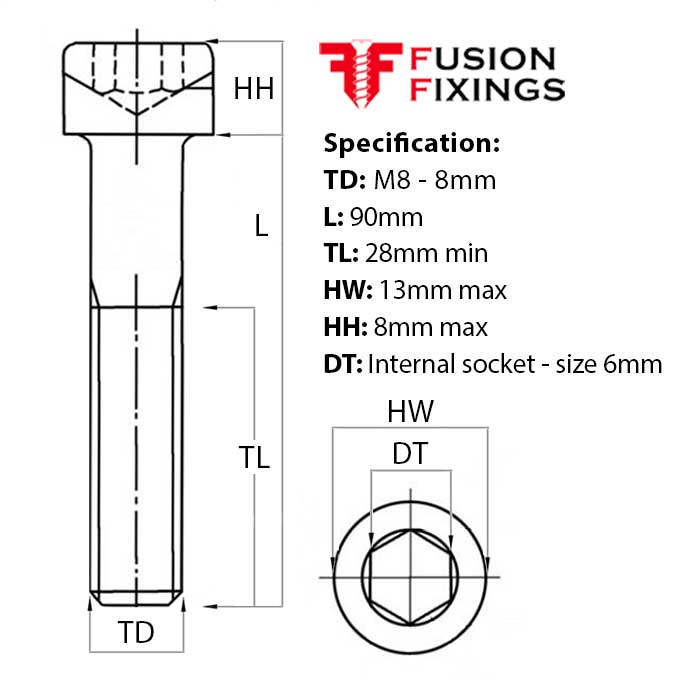

M8 socket cap head screw specification:

• Diameter (TD): M8 - 8mm
• Length (L): 90mm
• Thread length (TL): 28mm min
• Head width (H): 13mm max
• Head height (HH): 8mm max
• Head type: Cap Head
• Drive type (DT): Internal hex drive (Size 6mm)
• Pitch: 1.25mm
• Material: Grade 12.9 high tensile steel
• Conformity: DIN 912

A self-colour screw part of an extensive range of socket head cap screws available from Fusion Fixings with bulk discounts.

Corrosion resistant cap head socket screws!

Do you need a variety with resistance to corrosion? If so, take a look at our A2 stainless steel M8 x 90mm cap head socket screws.

For the highest corrosion resistance, take a look at our A4 stainless steel M8 x 90mm cap head socket screws.
