8mm (M6) x 65mm Flanged Hex Nut Sleeve Anchor, Zinc and Yellow

M6 Sleeve Anchor

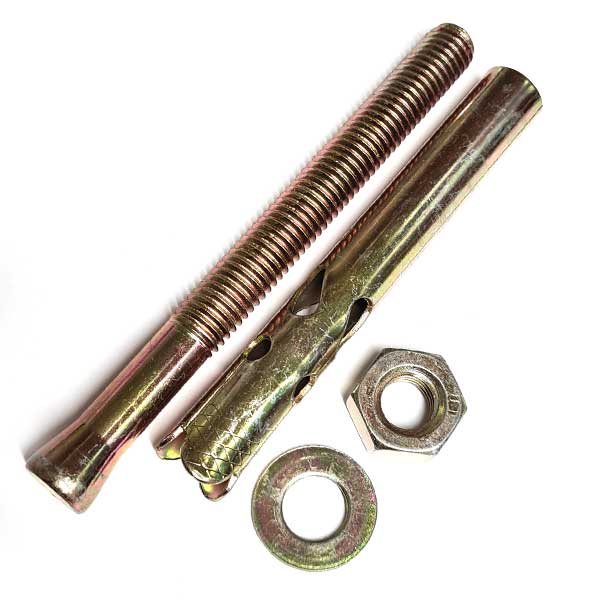

Flanged hex nut sleeve anchor ensures a reliable hold in concrete, stone, brickwork, perforated bricks, and dense concrete blocks. Supplied with a hex nut and washer that acts as a flange.

When reliability is needed, these masonry sleeve anchors are designed to get the job done.

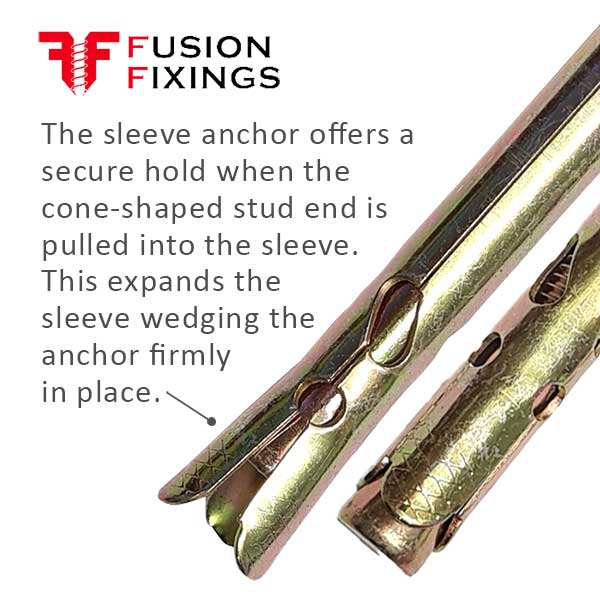

When inserted into a predrilled hole, the tightening of the nut pulls the wedge into the sleeve causing the sleeve to expand against the walls of the hole ensuring a strong mechanical grip.

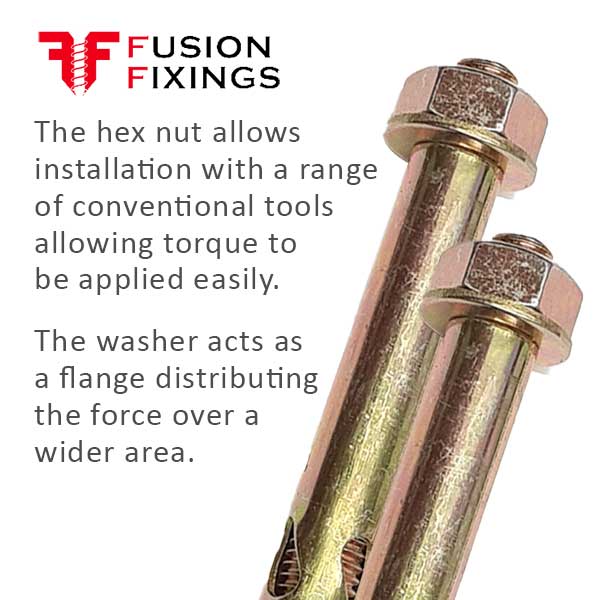

The hex nut allows torque to be added easily with conventional tools and the washer acts as a flange distributing the load across a wider area.

A torque-controlled masonry sleeve anchor for light to medium duty loads and used across many industries by both DIY enthusiast and professional alike.

M6 sleeve anchor specification:

• Thread diameter (TD): M6 - 6mm
• Outside drill diameter (OD): 8mm
• Length (L): 65mm
• Fixture clearance hole: 9mm
• Finish: Zinc and Yellow

Sleeve anchor bolts are commonly used in construction and other situations where a strong and durable connection in masonry is needed.

Used across many industries and here at Fusion Fixings there is a growing range of sleeve anchor bolts available at competitive prices with bulk discounts.

New to sleeve anchors? If so, take a look at our Sleeve Anchors information page.
